Arrays, Signal Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Package / Case	Size / Dimension	Mounting Type	Shielding	Operating Temperature	Height	Ratings	Number of Coils	Inductance - Connected In Series	Inductance - Connected In Parallel	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series
P0400NL INDUCT ARRAY 2 COIL 18.5UH SMD Pulse Larsen Antenna Datasheet	0 In Stock	1,155 : $1,778.70 Tube	Tomcat	Tube	Active	±20%	Nonstandard	0.715" L x 0.590" W (18.16mm x 14.99mm)	Surface Mount	Unshielded	-40°C ~ 130°C	0.310" (7.87mm)	-	2	74.1 µH	18.5 µH	5.4 A	2.7 A	-	-	23.24mOhm	93mOhm
PF0553.333NLT INDUCT ARRAY 2 COIL 34UH SMD Pulse Larsen Antenna Datasheet	800 In Stock	400 : $512.00 800 : $936.00 1,200 : $1,356.00 2,800 : $3,052.00 Tape & Reel (TR)	PF0553NL	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.315" (8.00mm)	-	2	135 µH	34 µH	3.2 A	1.6 A	6.2 A	3.1 A	59mOhm Max	240mOhm Max

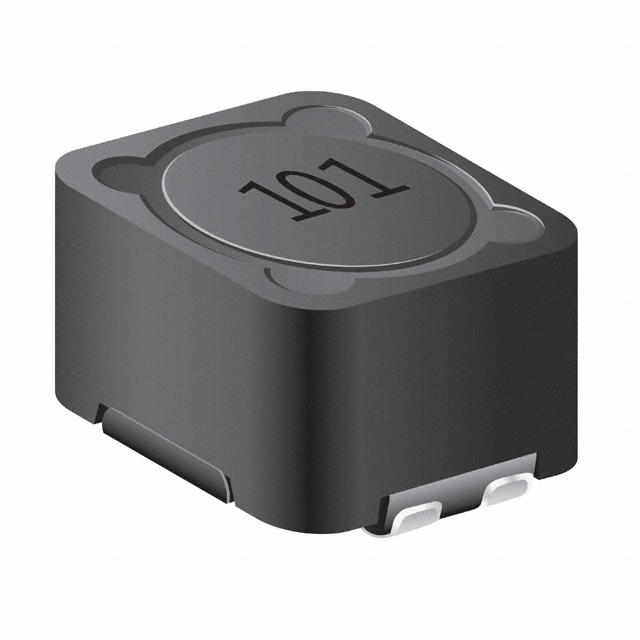

SRF1280-2R2Y INDUCT ARRAY 2 COIL 2.2UH SMD J.W. Miller / Bourns Datasheet	979 In Stock	400 : $404.00 800 : $736.00 1,200 : $1,068.00 2,800 : $2,408.00 10,000 : $7,900.00 Tape & Reel (TR)	SRF1280	Tape & Reel (TR) Cut Tape (CT)	Active	±30%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.315" (8.00mm)	-	2	8.8 µH	2.2 µH	12.5 A	6.23 A	25.5 A	12.7 A	9.2mOhm Max	33.8mOhm Max
SRF1260-1R5Y INDUCT ARRAY 2 COIL 1.5UH SMD J.W. Miller / Bourns Datasheet	614 In Stock	400 : $312.00 800 : $560.00 1,200 : $804.00 2,800 : $1,820.00 10,000 : $6,100.00 Tape & Reel (TR)	SRF1260	Tape & Reel (TR) Cut Tape (CT)	Active	±30%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.244" (6.20mm)	-	2	6 µH	1.5 µH	13.8 A	6.89 A	18.3 A	9.15 A	7.3mOhm Max	30.2mOhm Max
SRF1260-3R3Y INDUCT ARRAY 2 COIL 3.3UH SMD J.W. Miller / Bourns Datasheet	1,302 In Stock	400 : $312.00 800 : $560.00 1,200 : $804.00 2,800 : $1,820.00 10,000 : $6,100.00 Tape & Reel (TR)	SRF1260	Tape & Reel (TR) Cut Tape (CT)	Active	±30%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.244" (6.20mm)	-	2	13.2 µH	3.3 µH	9.26 A	4.63 A	12.7 A	6.35 A	10.1mOhm Max	37.2mOhm Max
PM3604-50-RC INDUCT ARRAY 2 COIL 50UH SMD J.W. Miller / Bourns Datasheet	324 In Stock	400 : $440.00 800 : $800.00 1,200 : $1,164.00 2,800 : $2,632.00 10,000 : $8,600.00 Tape & Reel (TR)	PM3600	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.550" L x 0.452" W (13.97mm x 11.48mm)	Surface Mount	Unshielded	-55°C ~ 125°C	0.265" (6.73mm)	-	2	200 µH	50 µH	1.28 A	640 mA	-	-	120mOhm Max	480mOhm Max
744874002 INDUCT ARRAY 2 COIL 2.4UH SMD Würth Elektronik Midcom Datasheet	825 In Stock	500 : $905.00 Tape & Reel (TR)	WE-DD	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.256" (6.50mm)	-	2	9.6 µH	2.4 µH	5.5 A	2.75 A	11.5 A	5.75 A	17.5mOhm Max	-
744873470 INDUCT ARRAY 2 COIL 47UH SMD Würth Elektronik Midcom Datasheet	280 In Stock	500 : $965.00 Tape & Reel (TR)	WE-DD	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.335" (8.50mm)	-	2	188 µH	47 µH	2.02 A	1.01 A	3.1 A	1.55 A	120mOhm Max	-

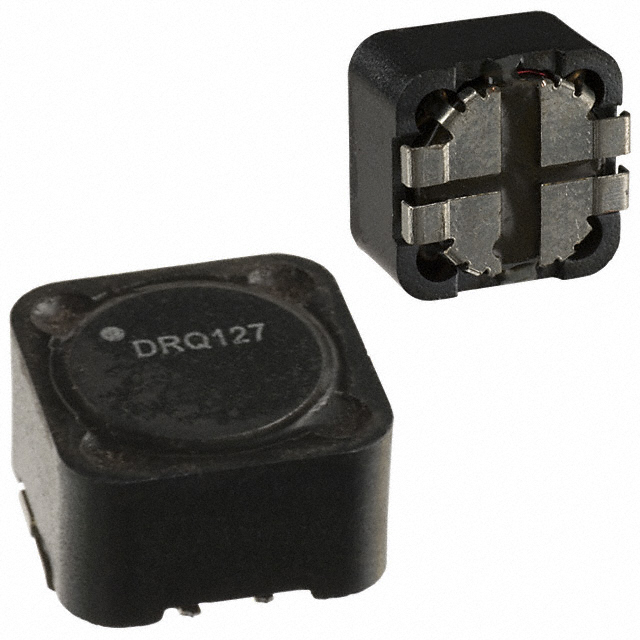

DRQ127-151-R INDUCT ARRAY 2 COIL 144.9UH SMD PowerStor (Eaton) Datasheet	690 In Stock	350 : $577.50 700 : $1,085.00 1,050 : $1,533.00 2,450 : $3,454.50 Tape & Reel (TR)	DRQ	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.315" (8.00mm)	-	2	579.6 µH	144.9 µH	1.59 A	796 mA	3.01 A	1.51 A	247mOhm	989mOhm
DRQ74-101-R INDUCT ARRAY 2 COIL 101.6UH SMD PowerStor (Eaton) Datasheet	975 In Stock	1,100 : $1,155.00 3,300 : $3,333.00 5,500 : $5,390.00 Tape & Reel (TR)	DRQ	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.299" L x 0.299" W (7.60mm x 7.60mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.175" (4.45mm)	-	2	406.4 µH	101.6 µH	860 mA	430 mA	990 mA	490 mA	383mOhm	1.53Ohm
