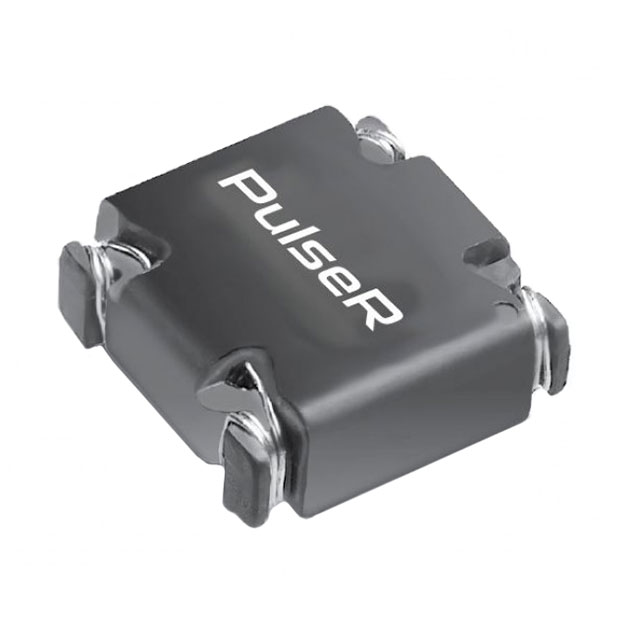

PL8208NLT

PL8208NLT

Part Number	PL8208NLT
Manufacturer	PulseR (iNRCORE)
Other Part Numbers	1902-1027-2-ND 1902-1027-1-ND 1902-1027-6-ND 1902-1027-6 1902-1027-1 1902-1027-2
Description	CMC 2.8A 2LN SMD
Detailed Description	2 Line Common Mode Choke Surface Mount 2.8A DCR 80mOhm
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		PulseR (iNRCORE)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Power Line
Size / Dimension		0.770" L x 0.670" W (19.56mm x 17.02mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-55°C ~ 130°C
Height (Max)		0.390" (9.91mm)
Current Rating (Max)		2.8A
DC Resistance (DCR) (Max)		80mOhm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Packages FNL vs. NL

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 773

Can ship immediately.
