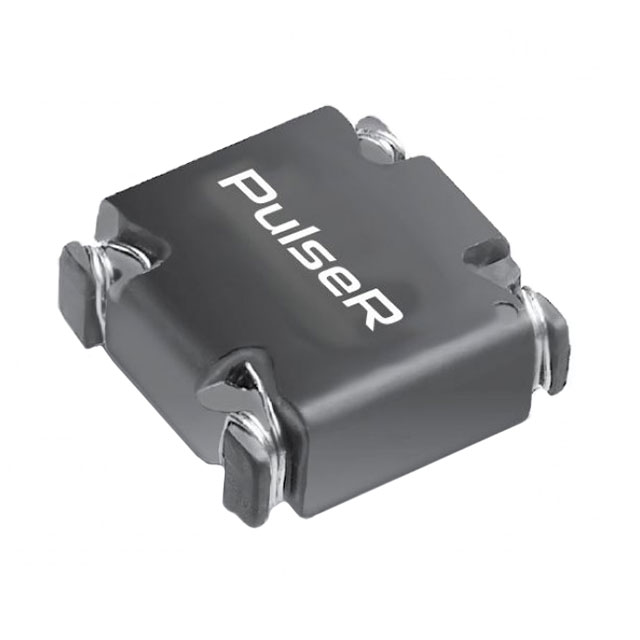

PL8200T

PL8200T

Part Number	PL8200T
Manufacturer	PulseR (iNRCORE)
Other Part Numbers	1902-1022-2-ND 1902-1022-1-ND 1902-1022-6-ND 1902-1022-2 1902-1022-1 1902-1022-6
Description	CMC 14A 2LN SMD
Detailed Description	2 Line Common Mode Choke Surface Mount 14A DCR 8mOhm
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		PulseR (iNRCORE)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Power Line
Size / Dimension		1.220" L x 1.000" W (30.99mm x 25.40mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-55°C ~ 130°C
Height (Max)		0.500" (12.70mm)
Current Rating (Max)		14A
DC Resistance (DCR) (Max)		8mOhm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PL8200T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant
