MSD1278H-103MED

Part Number

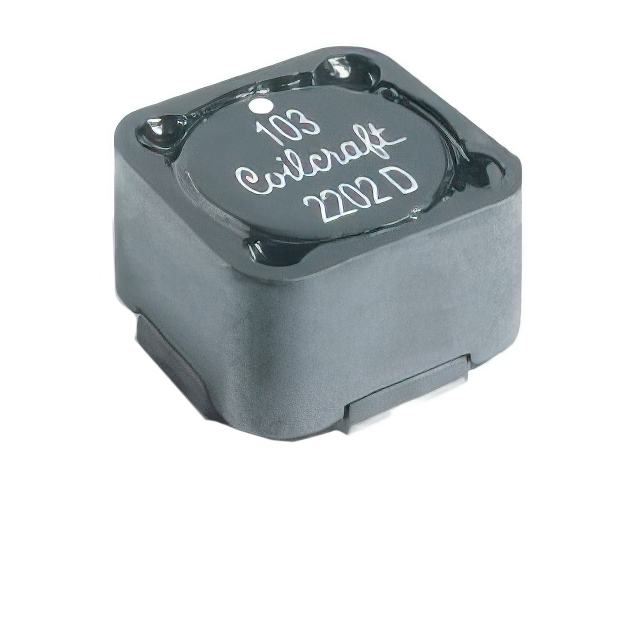

MSD1278H-103MED
Manufacturer COILCRAFT
Other Part Numbers
2457-MSD1278H-103MED-ND
2457-MSD1278H-103MED
Description FIXED INDUCTOR 10UH SMD
Detailed Description Shielded 2 Coil Inductor Array 40 µH Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 18mOhm Max DC Resistance (DCR) - Parallel Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
MSD1278H
Packaging
Strip
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.484" L x 0.484" W (12.30mm x 12.30mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
Height 0.317" (8.05mm)
Number of Coils 2
Inductance - Connected In Series 40 µH
Inductance - Connected In Parallel 10 µH
DC Resistance (DCR) - Parallel 18mOhm Max
DC Resistance (DCR) - Series 72mOhm Max
