MC908EY16CFAE _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	MC908EY16CFAE
Manufacturer	Freescale Semiconductor
Other Part Numbers	2156-MC908EY16CFAE-ND 2156-MC908EY16CFAE FREFREMC908EY16CFAE
Description	IC MCU 8BIT 16KB FLASH 32LQFP
Detailed Description	HC08 HC08 Microcontroller IC 8-Bit 8MHz 16KB (16K x 8) FLASH 32-LQFP (7x7)

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Freescale Semiconductor
Series		HC08
Packaging		Bulk
Part Status		Active

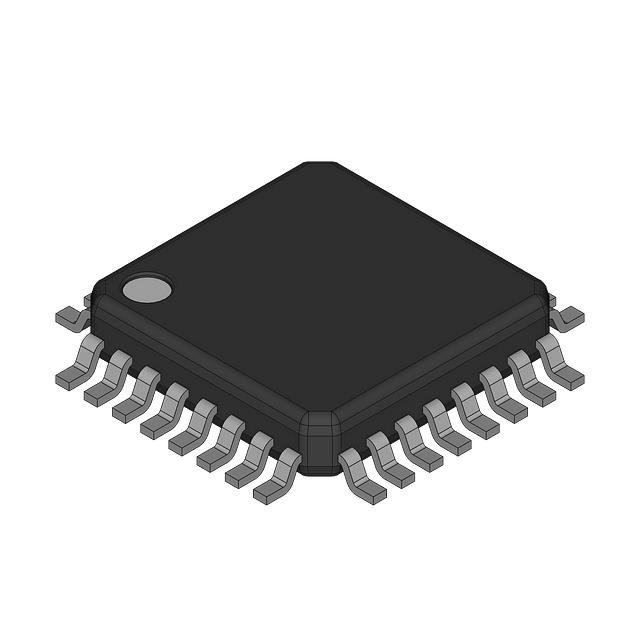

Package / Case		32-LQFP
Mounting Type		Surface Mount
Speed		8MHz
Program Memory Size		16KB (16K x 8)
RAM Size		512 x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		HC08
Data Converters		A/D 8x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		4.5V ~ 5.5V
Connectivity		LINbus, SCI, SPI
Peripherals		POR, PWM
Supplier Device Package		32-LQFP (7x7)
Number of I/O		24
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
