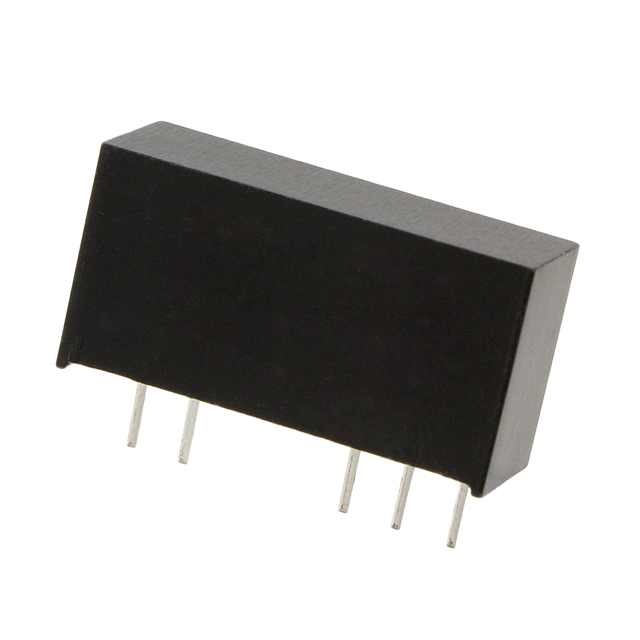

IML0212D09 _ DC DC Converters_Power Supplies

Part Number	IML0212D09
Manufacturer	XP Power
Other Part Numbers	1470-3678-ND 1470-3678
Description	DC DC CONVERTER +/-9V 2W
Detailed Description	Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 10.8V - 13.2V Input
Manufacturer Standard Lead Time	30 weeks

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		XP Power
Series		IML02 (2W)
Packaging		Tube
Part Status		Active
Features		SCP
Package / Case		7-SIP Module, 5 Leads
Size / Dimension		0.77" L x 0.39" W x 0.47" H (19.5mm x 9.8mm x 12.0mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		Medical
Voltage - Input (Max)		13.2V
Efficiency		80%
Current - Output (Max)		111mA, 111mA
Voltage - Input (Min)		10.8V
Voltage - Output 1		9V
Voltage - Output 2		-9V
Power (Watts)		2 W
Number of Outputs		2
Voltage - Isolation		4 kV

RESOURCE TYPE		LINK
Datasheets		IML0212D09
Datasheets		Declaration of Conformity IML02 Series
Datasheets		RoHS Statement

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
