ADUM1200CRZ _ Digital Isolators_Isolators

Part Number	ADUM1200CRZ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-ADUM1200CRZ-ND ADUM1200CRZ-ND 2156-ADUM1200CRZ -2735-ADUM1200CRZ ANAANAADUM1200CRZ ADUM1200CRZ-CRL Q14082804 505-ADUM1200CRZ
Description	DGTL ISO 2500VRMS 2CH GP 8SOIC
Detailed Description	General Purpose Digital Isolator 2500Vrms 2 Channel 25Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Isolators Digital Isolators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series		iCoupler®
Packaging		Tube
Part Status		Active

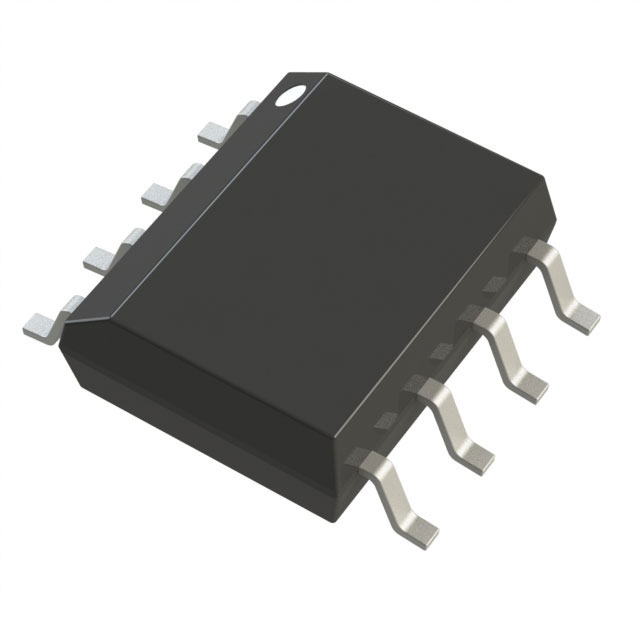

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Type		General Purpose
Operating Temperature		-40°C ~ 105°C
Voltage - Supply		2.7V ~ 5.5V
Data Rate		25Mbps
Technology		Magnetic Coupling
Voltage - Isolation		2500Vrms
Inputs - Side 1/Side 2		2/0
Supplier Device Package		8-SOIC
Rise / Fall Time (Typ)		2.5ns, 2.5ns
Common Mode Transient Immunity (Min)		25kV/µs
Propagation Delay tpLH / tpHL (Max)		45ns, 45ns
Isolated Power		No
Channel Type		Unidirectional
Pulse Width Distortion (Max)		3ns
Number of Channels		2

RESOURCE TYPE		LINK
Datasheets		ADUM1200CRZ
Datasheets		ADI Programmable Log Controller Solutions
Datasheets		Mult Dev Wafer Fab Site 13/Mar/2024

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
