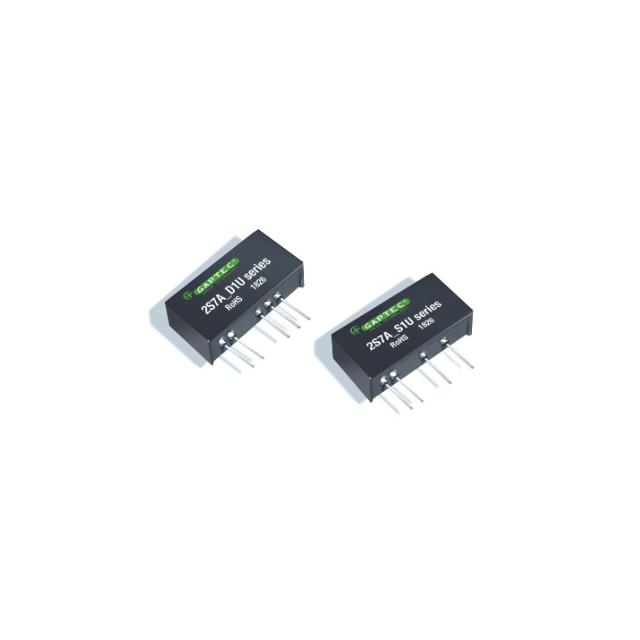

2S7A_2415S1U _ DC DC Converters_Power Supplies

Part Number	2S7A_2415S1U
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-2S7A_2415S1U-ND 3182-2S7A_2415S1UP 2S7A_2415S1U 3182-2S7A_2415S1UP-ND 3182-2S7A_2415S1U 2S7A_2415S1UP
Description	ISOLATED MODULE DC DC CONVERTERS
Detailed Description	Isolated Module DC DC Converter 1 Output 15V 133.3mA 21.6V - 26.4V Input
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		GAPTEC Electronic
Series		2S7A_1U (2W)
Packaging		Tube
Part Status		Active
Package / Case		7-SIP Module, 4 Leads
Size / Dimension		0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		ITE (Commercial)
Voltage - Input (Max)		26.4V
Approval Agency		CE
Efficiency		82%
Current - Output (Max)		133.3mA
Voltage - Input (Min)		21.6V
Voltage - Output 1		15V
Power (Watts)		2 W
Number of Outputs		1
Voltage - Isolation		1 kV
Standard Number		60950-1

RESOURCE TYPE		LINK
Datasheets		2S7A_2415S1U

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant
