XF2M-4515-1A-R100 _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	XF2M-4515-1A-R100
Manufacturer	Omron Electronic Components
Other Part Numbers	XF2M-4515-1A-R100-ND XF2M-4515-1A-R100 BYOMZ XF2M45151AR100BYOMZ XF2M45151AR100 XF2M-4515-1A-R100 BY OMZ

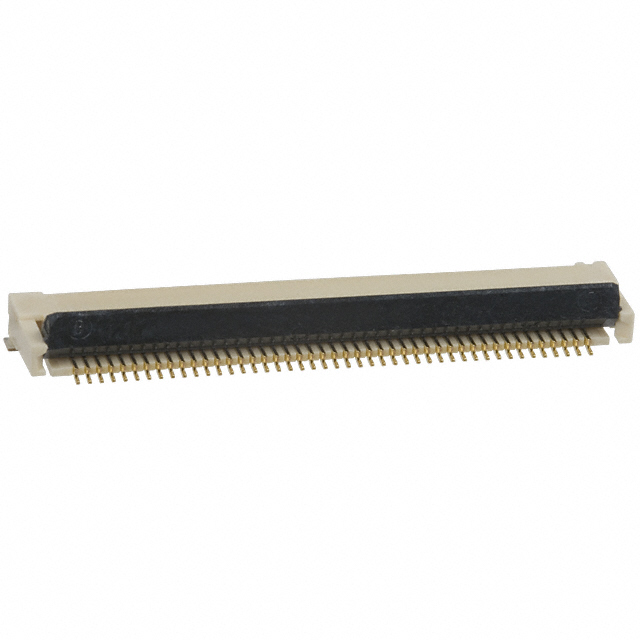

Description	CONN FPC 45POS 0.5MM R/A
Detailed Description	45 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Omron Electronic Components
Series		XF2M
Packaging		Tape & Reel (TR)
Part Status		Active
Contact Finish		Gold
Voltage Rating		50V
Mounting Type		Surface Mount, Right Angle
Number of Positions		45
Pitch		0.020" (0.50mm)
Operating Temperature		-30°C ~ 85°C
Termination		Solder
Height Above Board		0.083" (2.10mm)
Locking Feature		Rotary Lock, Backlock
Material Flammability Rating		UL94 V-0
Actuator Material		Liquid Crystal Polymer (LCP), Halogen Free
Contact Material		Copper Alloy
FFC, FCB Thickness		0.30mm
Housing Material		Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type		Tapered
Flat Flex Type		FPC
Connector/Contact Type		Contacts, Top and Bottom

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
