ISP844 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	ISP844
Manufacturer	Isocom Components
Other Part Numbers	58-ISP844-ND 58-ISP844
Description	16PIN AC INPUT, QUAD OPTOCOUPLER
Detailed Description	Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Isocom Components
Series		ISP844
Packaging		Tube
Part Status		Active

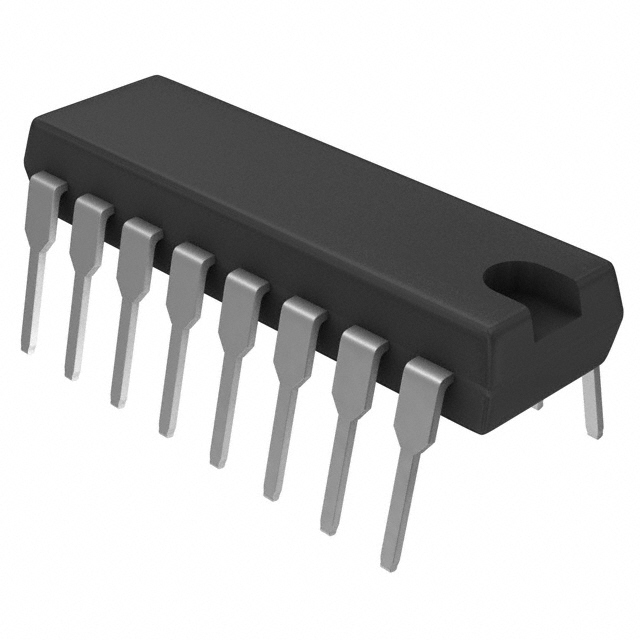

Package / Case		16-DIP (0.300", 7.62mm)
Output Type		Transistor
Mounting Type		Through Hole
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		AC, DC
Current - Output / Channel		50mA
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		20% @ 1mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		300% @ 1mA
Supplier Device Package		16-DIP
Voltage - Output (Max)		35V
Rise / Fall Time (Typ)		4µs, 3µs
Number of Channels		4
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		ISP844

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
