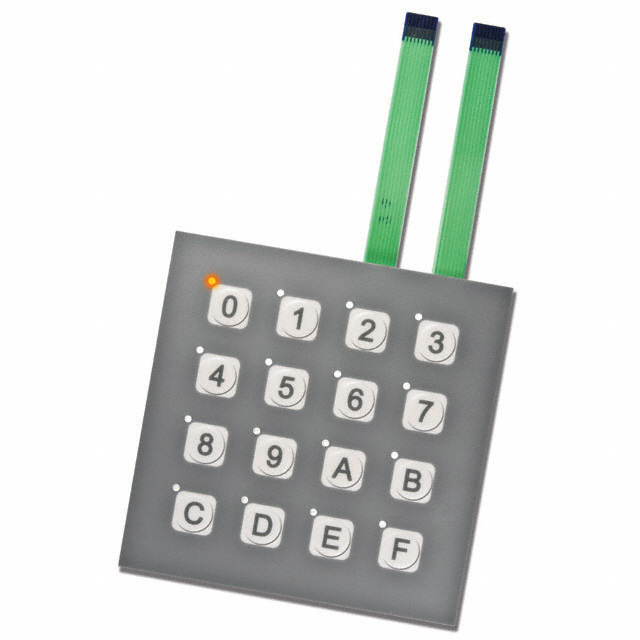

FMBP16BF _ Keypad Switches_Switches

Part Number	FMBP16BF
Manufacturer	NKK Switches
Other Part Numbers	360-2299-ND 360-2299 3937-FMBP16BF
Description	SWITCH KEYPAD 16KEY 0.02A 24V
Detailed Description	Keypad Switch 16 Polyester Overlay Keys Membrane (Snap Dome) Contacts Matrix Output Illuminated - Amber 0.02A @ 24VDC
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Switches Keypad Switches
Manufacturer		NKK Switches
Series		FM
Packaging		Box
Part Status		Active
Output Type		Matrix
Number of Keys		16
Mounting Type		Panel Mount, Front
Switch Type		Membrane (Snap Dome)
Operating Temperature		-15°C ~ 50°C
Termination Style		Cable with Connector
Legend		0 ~ 9, A ~ F
Illumination Voltage (Nominal)		2.1 VDC
Illumination		Illuminated - Amber
Contact Rating @ Voltage		0.02A @ 24VDC
Legend Type		Fixed
Key Type		Polyester Overlay
Matrix (Columns x Rows)		4 x 4
Legend Color		Gray
Key Color		White

RESOURCE TYPE		LINK
Datasheets		FMBP16BF
Datasheets		NKK Switches ODC Cert
Datasheets		RoHS Cert - Switches & Pushbuttons
Datasheets		NKK Switches PFOS & PFOA Free Cert

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8537.10.9170
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
