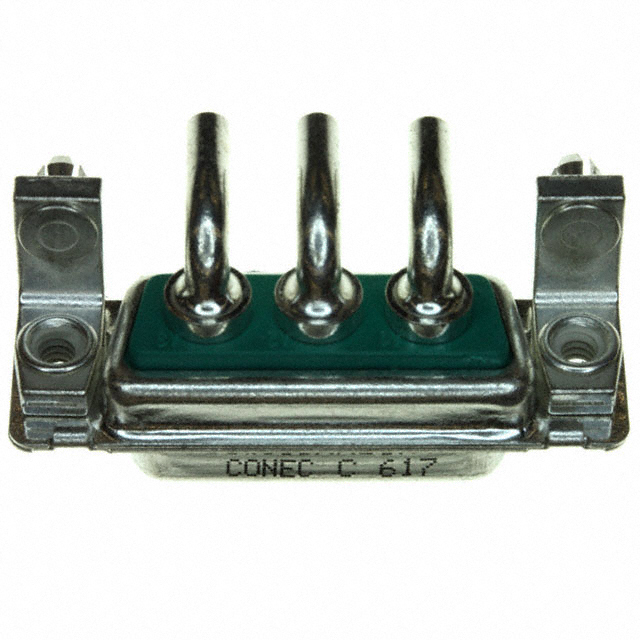

303W3CSXX56N40X _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	303W3CSXX56N40X
Manufacturer	CONEC (Amphenol CONEC)
Other Part Numbers	626-1100-ND 2266-303W3CSXX56N40X 626-1100
Description	CONN D-SUB RCPT/PLUG 3P R/A SLDR
Detailed Description	3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		CONEC (Amphenol CONEC)
Series
Packaging		Tray
Part Status		Active
Features		Board Lock, Mounting Brackets
Connector Type		Receptacle, Female Sockets and Male Pins
Contact Finish		Gold
Color		Green
Current Rating (Amps)		20A
Mounting Type		Board Edge, Through Hole, Right Angle
Number of Positions		3 (Power)
Number of Rows		1
Operating Temperature		-55°C ~ 125°C
Contact Type		Power
Flange Feature		Housing/Shell (4-40)
Termination		Solder
Connector Style		D-Sub, Combo
Contact Finish Thickness		30.0µin (0.76µm)
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish		Steel, Tin Plated
Contact Material		Copper Alloy
Shell Size, Connector Layout		2 (DA, A) - 3W3
Backset Spacing		0.459" (11.65mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
